VLX 500 Sliding Window

VLX 500 Sliding Window in Jacksonville, FL | Meridian Windows and Doors Jacksonville

The VLX 500 Sliding Window is a high-performance aluminum sliding system built for homeowners in Jacksonville who want clean sightlines, smooth operation, and a window that stands up to Florida’s heat, humidity, and storm season. It’s a favorite for wide openings, patio-facing walls, and any room where you want maximum glass and minimal frame. Meridian Windows and Doors Jacksonville is an authorized ViewLux installation partner, which means you get the product backed by a team that installs it correctly, to code, and to manufacturer spec. Call (904) 513-9670 to ask about the VLX 500 or schedule a free on-site measurement anywhere in the Jacksonville area.

Call (904) 513-9670

Product Overview – VLX 500 Sliding Window

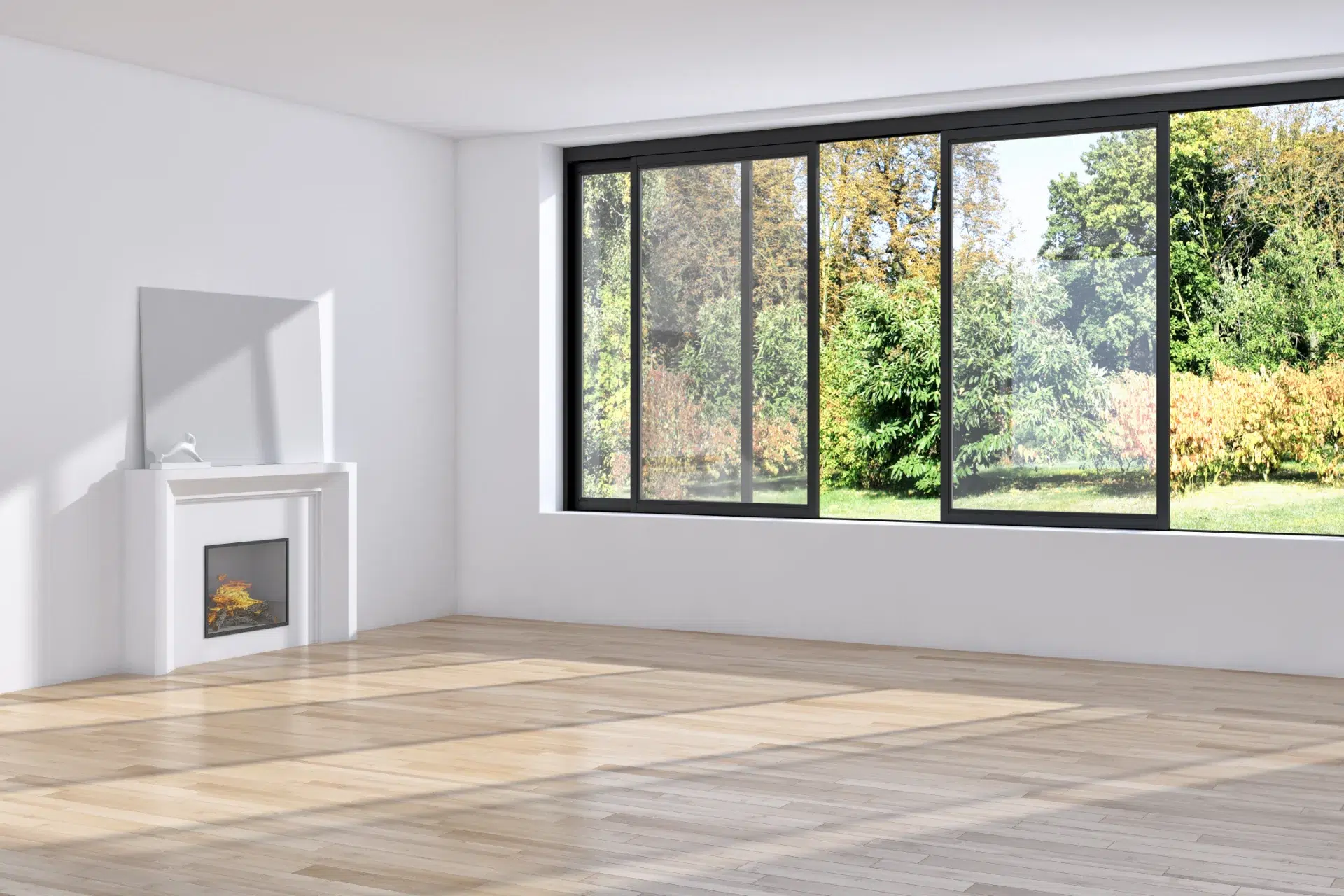

The VLX 500 is what happens when you strip a sliding window down to what matters: a slim aluminum frame that doesn’t get in the way, panels that glide with almost no effort, and engineering that keeps water and air out for decades. It’s a high-performance aluminum sliding system available in 2-track and 3-track configurations, so it works just as well in a standard bedroom opening as it does in a fourteen-foot living room wall overlooking the St. Johns River.

Architecturally, this series leans modern. The frame profile is narrow enough that the glass becomes the focal point, not the metal around it. Buyers choose the VLX 500 when they’re updating a 1970s ranch in Mandarin, building a new coastal contemporary home in Ponte Vedra, or replacing fogged-up sliders in a Riverside bungalow. The aluminum construction resists the salt air and humidity that punish lesser materials, and the powder-coated and anodized finishes won’t chalk or fade the way painted wood does in Jacksonville’s sun.

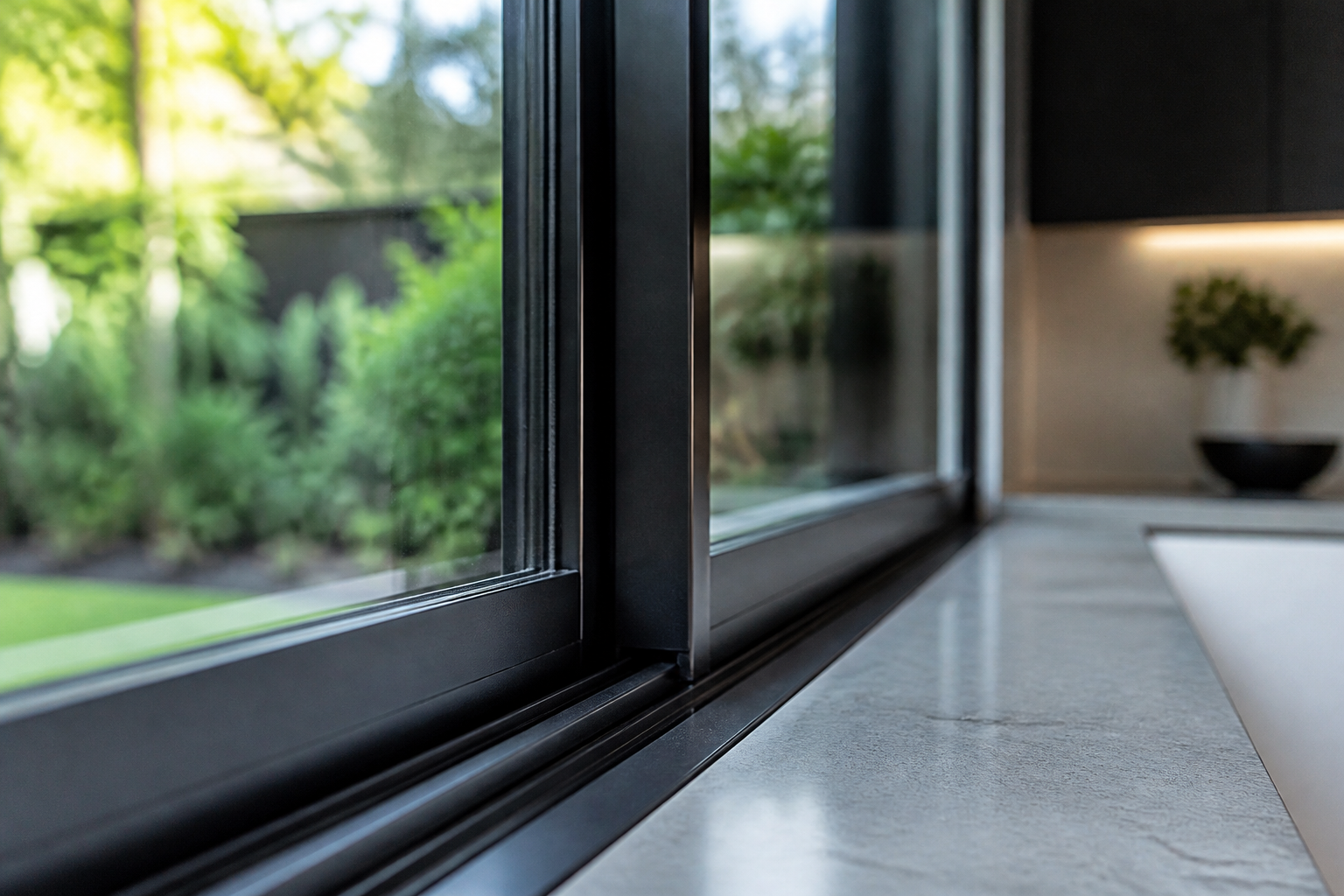

What separates this window from budget aluminum sliders is the fit and finish. The panels sit level, roll true, and lock with a solid feel. The 0.079-inch wall thickness on the frame extrusions gives the whole assembly rigidity without bulk. That matters when a panel is six feet wide and you’re opening and closing it every afternoon to let the breeze off the ocean through.

Meridian Windows and Doors Jacksonville carries this line because it performs. We’ve installed VLX 500 units in homes from Springfield to Nocatee, and the feedback is consistent: the glide is noticeably smoother than what people replaced, and the frames stay square year after year. Call (904) 513-9670 if you’d like to see one in person or get a quote for your project.

Technical Specifications

Here’s the VLX 500 Sliding Window at a glance. These numbers matter when you’re comparing products.

• Frame wall thickness: 0.079 inches. This gives the extrusion structural integrity without adding visual weight.
• Profile width: 1.97 inches. A narrow sightline that maximizes glass area for a given rough opening.
• Track configurations: 2-track (two panels, one operates, one fixed) and 3-track (three panels, two operate). The 3-track version is ideal for wide openings where you want more than half the width to open.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated. Each can be matched to the opening’s exposure, code requirements, and your privacy needs.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. All six are factory-applied finishes, not job-site paint.
• Screen options: Retractable screen or a standard sliding screen. The retractable model disappears into the frame when not in use.
• Performance compliance: NFRC-rated energy performance, AAMA 2400/2410 installation standard, and AAMA 812 low-expansion foam sealant specification on perimeter joints.

Performance Features

Thermal Efficiency

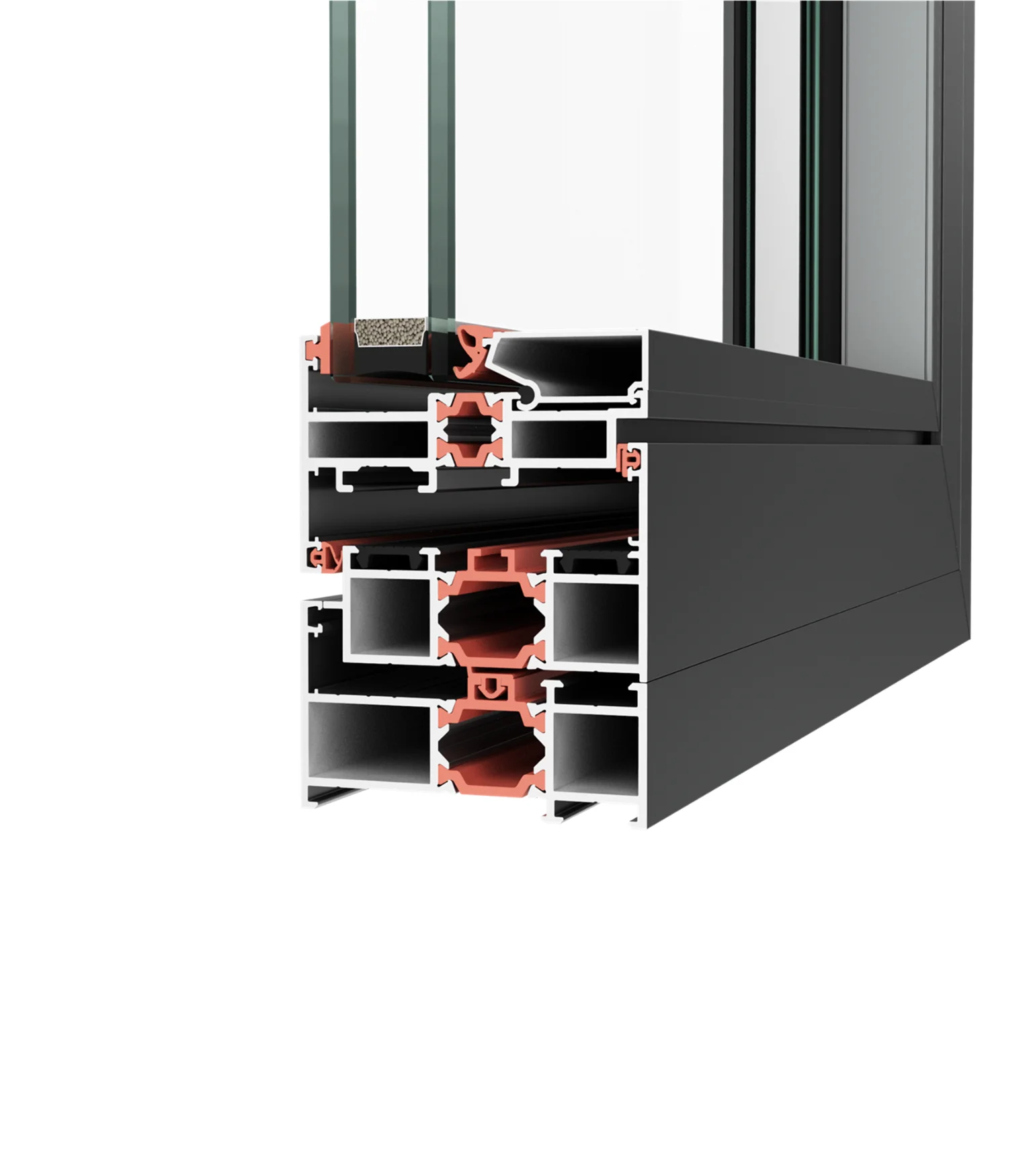

The VLX 500 uses thermal break technology to separate the interior and exterior aluminum faces. That break interrupts conductive heat transfer, which is the biggest weakness of standard aluminum frames. Combined with Low-E glass, it helps keep your Jacksonville cooling bill from spiking in July and August. NFRC-rated performance means the numbers are independently verified, not marketing claims.

Acoustic Performance
If you live near I-95, JTB, or a busy neighborhood corridor, you’ll notice the difference laminated glass makes. It dampens road noise and the general hum of the city. Combined with airtight perimeter sealing, the VLX 500 delivers better sound control than older single-pane sliders or builder-grade aluminum windows.

Airtightness & Weather Seal
The interlocks and weatherstripping on the VLX 500 are designed to close tightly and stay that way. Air leakage is what makes a room feel drafty and drives up humidity levels, which matters in Jacksonville where the dew point is high for half the year. A tight seal means your AC doesn’t work harder than it should.

Waterproofing
Water intrusion is the number one killer of window openings in Florida. The VLX 500 is engineered with properly sloped sills, drainage chambers, and full-perimeter sealing when installed per AAMA 2400/2410. On every install, Meridian Windows and Doors Jacksonville applies AAMA 812-rated low-expansion foam on all perimeter joints. That’s what prevents the water stains and sill rot you see on poorly flashed windows after a bad storm.

Wind Resistance
Jacksonville sits in a wind-borne debris zone, and the building code reflects that. The VLX 500 is wind-load rated for our local climate requirements. When an opening is required to meet impact standards, the laminated glass option provides the debris resistance needed to pass. We’ll verify what your specific project requires before we order anything.

Security & Hardware
The locking hardware on the VLX 500 is more than an afterthought. The sash lock engages firmly, and the aluminum frame resists prying better than vinyl alternatives. Tempered or laminated glass adds another layer of security and peace of mind, especially on ground-floor installations or windows near doors.

Color & Glass Options

The VLX 500 comes in six finishes, and the choice changes the personality of the room. Premium Black is the current favorite for modern and transitional homes; it frames the view like a photograph and hides the frame visually at dusk. Pure White suits traditional Florida architecture, beach cottages, and anything with white trim inside. Anodized Silver is the durable, low-maintenance classic: raw aluminum with an oxide coating that doesn’t chip or peel. Bronze reads warmer and works well on homes with earth-tone exteriors. Champagne offers a softer metallic that hides dust well and suits Mediterranean or Spanish revival styles. Teak Wood is a powder-coated wood-look finish that gives you the warmth of wood with none of the rot, termite, or repainting issues.

Glass selection depends on orientation and purpose. Clear glass lets the most light through and is fine for shaded or north-facing walls. Frosted glass provides privacy for bathrooms, side yards, or a window that faces a near neighbor. Low-E is the energy upgrade most Jacksonville homes should have; it reflects infrared heat while letting visible light pass. Tempered glass is a safety code requirement for certain locations, like windows near doors or low to the floor. Laminated glass is the impact-resistant option for wind-borne debris compliance and sound control.

Installation by Meridian Windows and Doors Jacksonville in Jacksonville

A well-built window installed badly is a bad window. That’s the honest truth. The VLX 500’s performance ratings assume a proper installation. If the opening isn’t flashed correctly, if the frame isn’t level, plumb, and square, or if the perimeter isn’t sealed, the window will leak air and water no matter how good the engineering is. Worse, the ViewLux warranty does not cover failures caused by installation error.

Meridian Windows and Doors Jacksonville installs the VLX 500 per AAMA 2400/2410, the recognized standard for window installation. Our process starts with a pre-installation inspection: we measure the rough opening, check the surrounding structure for rot or water damage, and verify that the header and sill are sound. If there’s hidden damage, we tell you before we order glass, not after we’ve started cutting.

During installation, the frame is set level, plumb, and square, shimmed at the right points so the panels roll freely without binding. We apply AAMA 812-rated low-expansion foam sealant on every perimeter joint. Low-expansion foam matters; standard spray foam can bow a window frame as it cures, and a bowed frame means a slider that sticks. After the window is set and sealed, we do a water test to confirm there are no leaks at the head, jambs, or sill. Then we clean up the work area and walk you through the operation and maintenance.

Local conditions make installation quality even more important here. Jacksonville’s summer thunderstorms deliver sideways rain. The humidity means any air leak becomes a condensation problem. And the seasonal temperature swings cause expansion and contraction that tests any perimeter joint. A window installed correctly for this climate is a window that stays comfortable and dry for decades.

Frequently Asked Questions – VLX 500 Sliding Window

Get a Quote – VLX 500 Sliding Window in Jacksonville

If you’re considering the VLX 500 for your home, the next step is simple. Call (904) 513-9670 and we’ll schedule a free on-site measurement at your Jacksonville-area home, discuss which glass and finish options fit your project, and give you a written line-item quote. No pressure, no surprises, just real numbers from an authorized ViewLux installation partner.

Written by the team at Meridian Windows and Doors Jacksonville, an authorized ViewLux installation partner serving Jacksonville, FL and surrounding communities.
