VLX 100 Pivot Door

VLX 100 Pivot Door in Jacksonville, FL | Meridian Windows and Doors Jacksonville

The VLX 100 Pivot Door is a heavy-duty aluminum door that rotates on a vertical center axis instead of swinging on side hinges. That single engineering choice changes everything about how a home feels when you walk through it. Oversized glass panels, a frame profile built to stay square for decades, and a pivot point that carries weight evenly across the floor and header. Meridian Windows and Doors Jacksonville is an authorized ViewLux installation partner, which means we measure, order, install, and warranty this door in Jacksonville, FL with factory backing. Call (904) 513-9670 to talk through whether the VLX 100 fits your project.

Call (904) 513-9670

Product Overview – VLX 100 Pivot Door

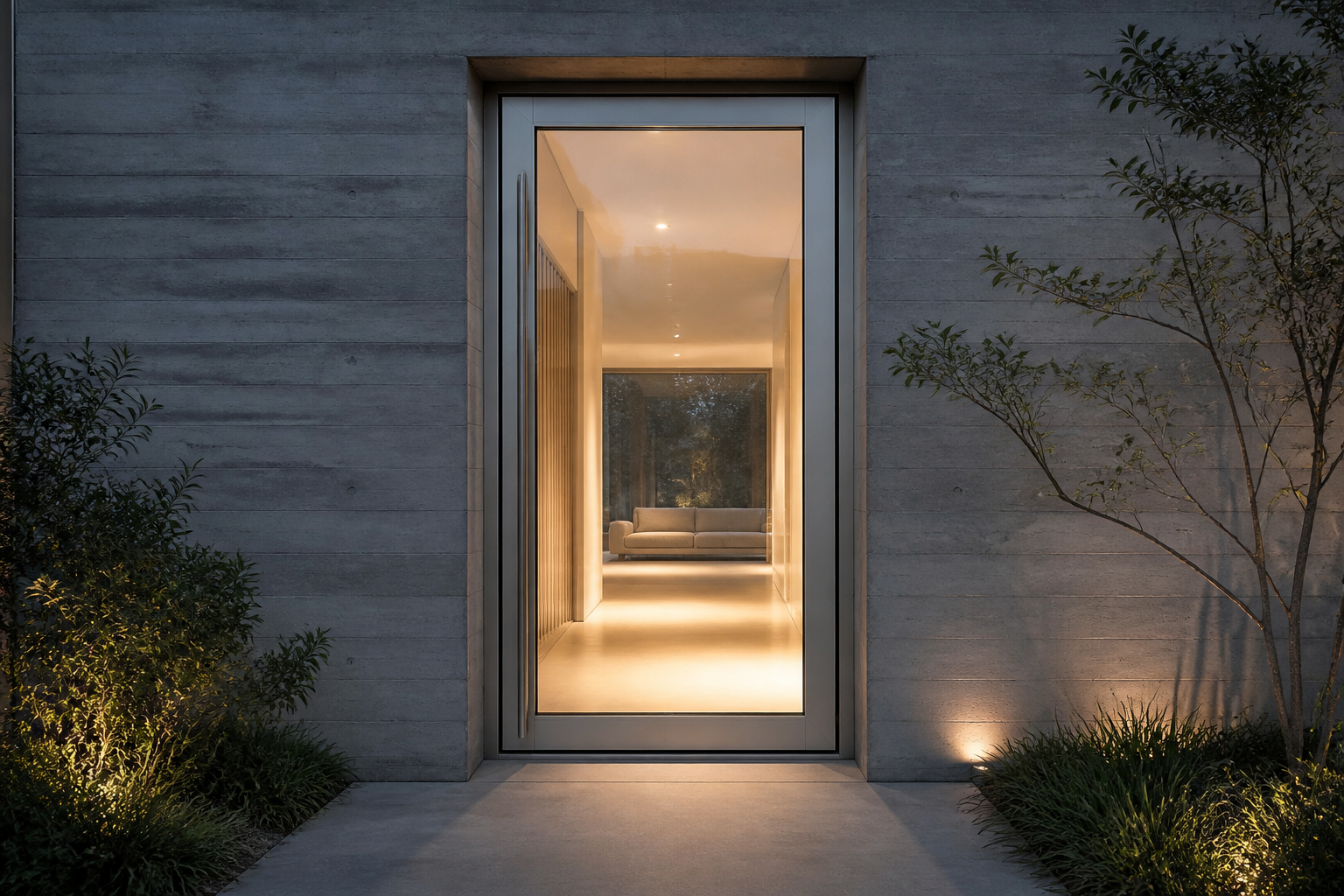

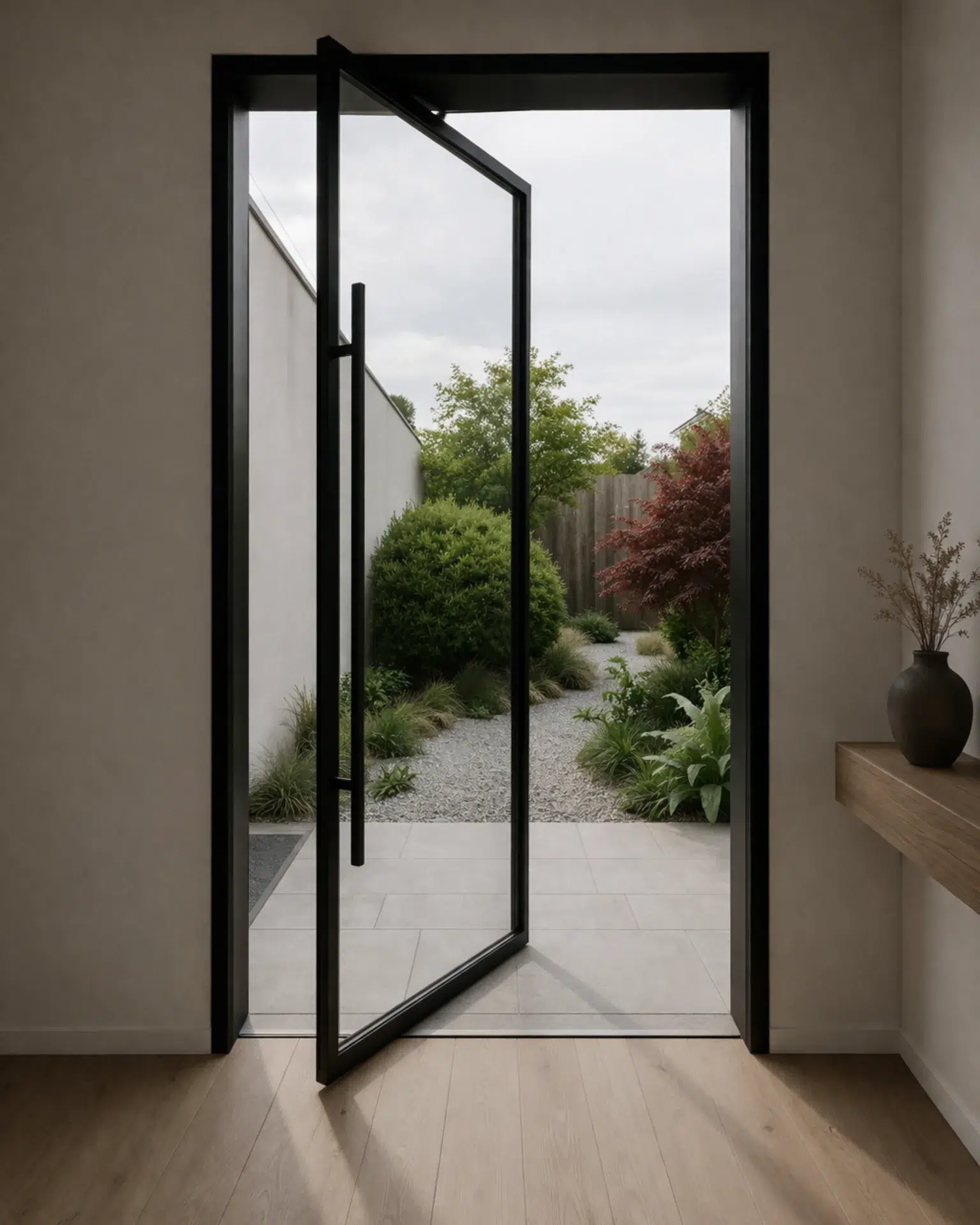

A pivot door is an architectural statement before it’s anything else. The VLX 100 takes that concept and builds it with commercial-grade aluminum, so the drama doesn’t come at the cost of longevity. The panel rotates on a vertical center axis, offset from the edge, which lets a single slab reach 60 inches wide and 120 inches tall without sagging or dragging at the corners. That’s a full five feet of glass and aluminum moving on one pivot point.

We see this door specified most often on modern coastal homes in Jacksonville Beach, contemporary infill builds in Riverside and Avondale, and on interior transition walls in Springfield and San Marco where natural light matters but the client wants a defined threshold. The framing is aluminum, not wood or vinyl, which matters in Jacksonville, FL because our humidity cycles are brutal on anything that absorbs moisture. Aluminum doesn’t warp in August. It doesn’t swell after a nor’easter. It holds its shape when a wood jamb would start binding at the strike plate.

The glass is the headline, but the engineering underneath is what keeps the door operating smoothly year after year. The pivot hardware carries the panel’s full weight through floor and header plates, and the slab is engineered so the load path stays balanced even with the oversized dimensions this series allows. Buyers choose the VLX 100 because they want a front entry that looks custom without commissioning a one-off steel fabrication. Meridian Windows and Doors Jacksonville orders each unit to spec and installs it so the sweep, seals, and pivot align exactly as the factory intended.

Technical Specifications

These numbers matter when you’re comparing pivot door systems. The VLX 100 uses a frame wall thickness of 0.098 inches and a profile width of 2.56 inches, which gives the panel torsional rigidity across the full span without looking bulky at the sightlines. Maximum slab dimensions run up to 60 inches wide by 120 inches tall, making this one of the larger single-panel pivot doors available in the Jacksonville residential market.

• Frame wall thickness: 0.098″ extruded aluminum
• Profile width: 2.56″
• Maximum span: up to 60″ wide × 120″ tall
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Operation: single-panel pivot, floor and header pivot hardware
• Performance compliance: NFRC-rated thermal break, AAMA 2400/2410 installation standard

Every VLX 100 we quote for a Jacksonville home gets a wind-load check against the project’s specific exposure. A door on the Intracoastal in Atlantic Beach has different requirements than one facing a shaded courtyard in Ortega, and we size the glass package and hardware accordingly.

Performance Features

Thermal Efficiency – The VLX 100 frame includes a thermal break, which separates the interior and exterior aluminum profiles so heat doesn’t conduct straight through the metal. Combined with Low-E glass, this door carries an NFRC-rated energy performance profile. In Jacksonville’s cooling season, that translates to a front entry that doesn’t act like a radiator pointed at your living room.

Acoustic Performance – Laminated glass is the quiet option. The interlayer dampens mid and high-frequency sound, which matters on busy Jacksonville streets like Hendricks Avenue or anywhere near I-95 and the Hart Bridge corridor. Even with standard clear glass, the full-perimeter compression seals knock down noise versus a typical hinged entry door.

Airtightness & Weather Seal – We install every VLX 100 with AAMA 812 low-expansion foam sealant on all perimeter joints. That’s a specific installation standard, not a preference. It prevents air channeling through the rough opening, keeps conditioned air inside, and stops the drafts that make a pivot door feel cheap and leaky on windy winter days in North Florida.

Waterproofing – Rain drives hard against east-facing entries in Jacksonville Beach and Ponte Vedra during summer thunderstorms. The VLX 100’s bottom sweep and compression seals are designed to shed water outward, and when we flash the rough opening per AAMA 2400/2410, the opening drains correctly. Water that never reaches the frame can’t reach your floors.

Wind Resistance – Pivot doors span wider than conventional doors, so wind load is the spec that separates a real system from a novelty. The 2.56-inch profile width and 0.098-inch wall thickness resist deflection under positive and negative pressure. We specify the glass thickness and hardware set based on your home’s exposure category, and impact-resistant laminated glass is available for coastal wind zones where code requires it.

Security & Hardware – The pivot mechanism itself acts as a deterrent. Most forced-entry attempts target hinge pins or latch strikes on standard doors. A pivot door has neither exposed. The vertical axis hardware is concealed in the floor and header, and the slab’s mass makes brute-force entry impractical. Tempered glass options add shatter resistance, and laminated glass takes it further with a structural interlayer.

Color & Glass Options

Six finishes cover most design directions. Premium Black reads as modern and high-contrast against white stucco or light brick, and it’s the most requested finish we order for new construction in Jacksonville’s urban neighborhoods. Pure White suits transitional homes in Mandarin and Julington Creek where the door should blend with light trim. Anodized Silver is the true architectural look, a raw metallic finish that pairs with concrete, steel accents, and minimalist landscaping. Bronze warms up traditional elevations and photographs beautifully against natural wood soffits. Champagne is subtler than bronze and works well on mid-century and coastal contemporary homes throughout Jacksonville, FL. Teak Wood replicates the warmth of timber without any of the maintenance.

Glass selection depends on orientation and privacy needs. Clear maximizes visibility and light. Frosted and Obscure break up sightlines while keeping light transmission, useful for entries that open onto a living space. Low-E cuts heat gain from direct western exposure. Tempered meets safety glazing code for doors by shattering into small pieces if broken. Laminated offers the best combination of impact resistance, security, and sound control.

Installation by Meridian Windows and Doors Jacksonville in Jacksonville

The difference between a pivot door that performs for 20 years and one that binds, leaks, or drags within two years is almost always the installation. A pivot door carries its weight differently than a hinged door. The rough opening has to be dead level and plumb, the pivot plates have to be set to the manufacturer’s exact geometry, and the clearance tolerances are tighter than anything a standard door installer sees on a typical jobsite.

Our process starts with a pre-install inspection of the rough opening. We check opening dimensions, subfloor flatness, and header condition before the door ever arrives from ViewLux. If the opening isn’t ready, we say so before the panel is sitting in your garage. On install day, we set the floor pivot and header pivot to level and plumb, then hang the slab and adjust the sweep, compression seals, and pivot alignment until the door moves through its full arc with consistent resistance and no drift.

Every perimeter joint gets AAMA 812 low-expansion foam sealant. Flashing and drainage follow AAMA 2400/2410 installation standards, which are the reference standards for fenestration installation and what ViewLux requires for warranty coverage. We run a final water test on exterior applications before we clean up and walk you through operation and basic maintenance. The same Jacksonville humidity that warps wood framing can shorten the life of an incorrectly flashed aluminum opening, which is why the sealant and flashing sequence matters as much as the hardware.

Improper installation voids the manufacturer warranty on this product. That is true of every premium door line, and it’s specifically true for pivot doors where the load path and seal geometry are unforgiving of shortcuts. Meridian Windows and Doors Jacksonville installs this product in Jacksonville, FL to the factory’s documented procedures, because a warranty is only worth having if the door was set correctly in the first place.

Frequently Asked Questions – VLX 100 Pivot Door

Get a Quote – VLX 100 Pivot Door in Jacksonville

If the VLX 100 is on your shortlist, the next step is a free on-site measurement. We will walk the opening, check the frame condition, discuss glass and finish options for your home’s orientation, and produce a written quote with a fixed price. Call Meridian Windows and Doors Jacksonville at (904) 513-9670 to start your project.

Written by the team at Meridian Windows and Doors Jacksonville, authorized ViewLux installation partner serving Jacksonville, FL and the surrounding area.
