VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Jacksonville, FL | Meridian Windows and Doors Jacksonville

The VLX 80 Fixed / Picture Window is a non-operable window built around one idea: as much glass as the frame can hold. It doesn’t open, tilt, or slide. What it does is frame the view with a slim 1.97-inch aluminum profile that nearly disappears, leaving floor-to-ceiling sightlines with zero visible hardware. We’re seeing it specified most often for living rooms facing the St. Johns River, master bedrooms in Neptune Beach, and great rooms in San Marco where the view is the point of the room. As an authorized ViewLux installation partner, Meridian Windows and Doors Jacksonville supplies and installs this window throughout the Jacksonville area. Call (904) 513-9670 to talk through sizing and pricing for your project.

Call (904) 513-9670

Product Overview – VLX 80 Fixed / Picture Window

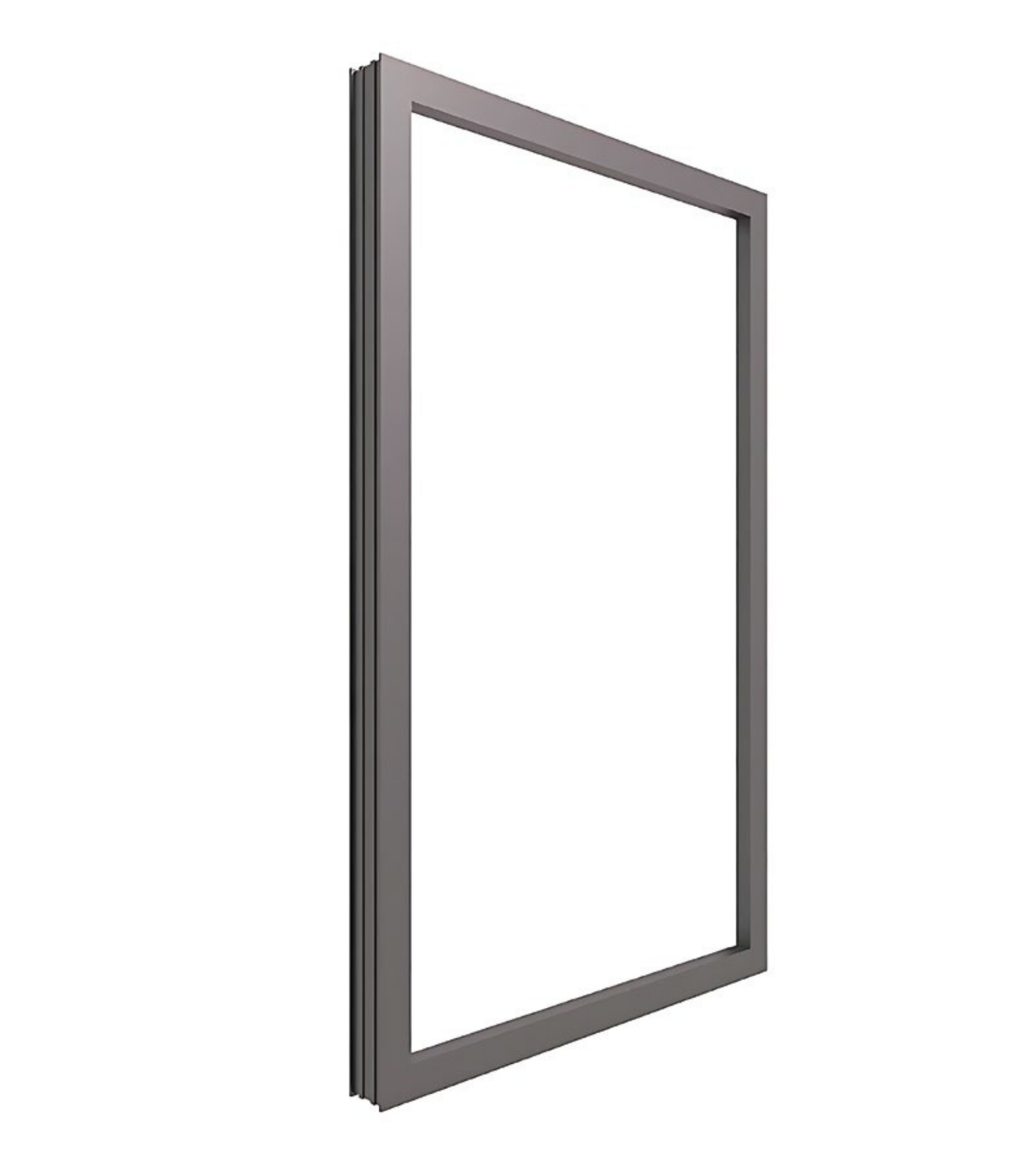

The VLX 80 is designed for homeowners and architects who don’t want the window to interrupt the view. The frame extrusion measures just 1.97 inches across, which means more of the opening goes to glass and less to metal. No hinges, no handles, no crank mechanisms, no visible fasteners. The result is a clean rectangle of glass that reads more like a wall opening than a traditional window.

This series uses a thermally broken aluminum frame. That’s the engineering detail that separates it from older aluminum windows that sweated in summer and felt cold to the touch in winter. A polyamide strip sits between the interior and exterior aluminum profiles, breaking the conductive path that would otherwise transfer heat straight through the metal. It’s the same approach used in commercial storefront systems, just scaled for residential use.

In Jacksonville’s climate, aluminum makes practical sense. It doesn’t warp or swell in humidity the way wood frames can. It doesn’t get brittle after years of Florida sun exposure. And because the VLX 80 is a fixed window with no moving parts, there’s very little to maintain or replace over time. For homes in areas like Riverside, Avondale, or Ponte Vedra where historic character matters, the clean lines of the anodized or powder-coated finishes keep the look modern without clashing with traditional architecture.

Technical Specifications

Performance Features

Thermal Efficiency – The thermally broken frame carries an NFRC-rated performance label, which means the U-factor and solar heat gain numbers are tested, not estimated. In Jacksonville, that translates to lower cooling load in July and August. The Low-E glass option further cuts solar heat gain while keeping the view clear.

Acoustic Performance – If you live on a busy street in Murray Hill or near I-95 in San Marco, laminated glass is worth considering. The PVB interlayer dampens mid-range frequencies, which is where most traffic noise sits. We’ve had clients report a noticeable drop in interior sound levels after swapping single-pane sash windows for VLX 80 units with laminated glass.

Airtightness & Weather Seal – Fixed windows have an inherent advantage over operable ones: no sashes to leak air around. The VLX 80 seals glass directly into the frame, and the frame seals to the rough opening with AAMA 812 low-expansion foam on every perimeter joint. That’s the sealant standard we follow on every install in Jacksonville.

Waterproofing – Jacksonville gets about 50 inches of rain a year, much of it in afternoon downpours. The VLX 80’s drain-less fixed design, combined with the AAMA 812 perimeter seal and proper sill flashing, keeps water on the outside. Our installation process includes a final water test on every window we set.

Wind Resistance – Fixed windows handle wind load better than operable units because there’s no sash to flex. The VLX 80 is wind-load rated for coastal and near-coastal requirements, which matters for homes east of the Intracoastal and in evacuation zones where building code demands rated openings matched to site-specific wind speeds.

Security & Hardware – With no moving hardware to pry, a fixed window’s weak point is the glass itself. If security is a concern, tempered or laminated glass changes the equation. Laminated glass holds together after impact, and the impact-resistant laminated option meets standards for high-wind and forced-entry resistance.

Color & Glass Options

The VLX 80 comes in six finishes. Premium Black is the most-requested finish for modern and contemporary homes in Jacksonville’s newer subdivisions. Pure White suits the traditional look common in Ortega and Mandarin. Anodized Silver gives a commercial, loft-like feel that works well in converted spaces downtown. Bronze is a warmer metallic that pairs nicely with earthy tones. Champagne is a lighter warm metallic that reads almost soft gold. Teak Wood is a wood-grain transfer finish that gives the aluminum the look of natural wood without the maintenance, which is why we recommend it for coastal homes in Atlantic Beach and Neptune Beach where real wood frames struggle with salt air.

On the glass side, Clear lets in maximum light. Frosted works for bathrooms and sidelight situations where you want daylight without visibility. Low-E is our default recommendation in Jacksonville; it reflects infrared heat before it enters the room. Tempered glass is safety-rated for impact and is required by code in certain locations like doors and low-sill windows. Laminated glass adds acoustic and security benefits. Gray and Black Tint cut glare, which matters on west-facing exposures where afternoon sun is brutal.

Installation by Meridian Windows and Doors Jacksonville in Jacksonville

Here’s the part most window companies don’t talk about: a great window installed badly is still a bad window. We see it constantly in Jacksonville. Leaks around the frame. Fogging between the panes. Windows that bind or rack because the rough opening wasn’t prepared correctly. The VLX 80’s manufacturer warranty protects against product defects, but that warranty assumes a proper installation. If the installation fails, you’re caught between the installer and the manufacturer, and nobody wants that conversation.

Our installation process starts before any window is ordered. We measure every rough opening ourselves, checking for square, checking the condition of the existing framing and flashing, and identifying any water intrusion issues. That’s not a sales walkthrough; it’s part of the job. We verify every opening before we place the order, because a 120-inch-wide fixed window doesn’t forgive measurement errors.

On install day, we set every unit level, plumb, and square. Shimmed where needed. Anchored per manufacturer specifications. Then we seal the perimeter with AAMA 812 compliant low-expansion foam at every joint. That foam does two jobs: it seals air and water, and it provides insulation continuity between the window frame and the rough opening. After the window is set, we apply the exterior flashing and sealant per AAMA 2400/2410 installation standards, then run a water test to confirm the seal before any trim goes up. Finally, we clean the glass, remove the debris, and walk the job with you.

For Jacksonville specifically, we account for wind-driven rain on east-facing exposures, for the humidity that makes condensation a year-round consideration, and for local building code requirements that vary between Duval, St. Johns, Nassau, and Clay counties. We’ve been installing windows in this market long enough to know which inspectors look at what.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window? Lead time for the VLX 80 typically runs three to five weeks from order confirmation, depending on glass and finish selection. Custom sizes and laminated or impact glass options can add a week or two. Call (904) 513-9670 and we’ll give you a current lead time estimate for your specific configuration.

Does the VLX 80 qualify for energy tax credits? The VLX 80 with Low-E glass may qualify for federal energy tax credits if the NFRC ratings meet the current IRS requirements for windows and skylights. Eligibility depends on the specific glass package. We can pull the NFRC label data for your configuration during your free estimate so you’ll know before you order.

What warranty comes with the Fixed / Picture Window? The VLX 80 carries ViewLux’s manufacturer warranty covering the frame, glass, and finish, and it applies only when the window is installed by an authorized partner like Meridian Windows and Doors Jacksonville. That’s a key reason to avoid discount installers; manufacturer warranty claims require verifiable installation compliance.

Can I customize the size of the VLX 80 Fixed / Picture Window? Yes. The VLX 80 is fabricated to order, so we’ll size each window to your rough openings, up to the 120-inch maximum span. We handle the measurements on site to ensure every unit is built for the opening it will actually sit in, not a ballpark figure.

How do I maintain aluminum frames in Jacksonville? Wash the frames twice a year with mild soap and water. Check the perimeter sealant once a year for gaps or cracking, especially on south and west exposures where UV degrades sealant faster. Never use abrasive cleaners or pressure washers on the powder-coated finish. Call us at (904) 513-9670 if you notice any signs of water intrusion.

Get a Quote – VLX 80 Fixed / Picture Window in Jacksonville

If you’re planning a remodel or new build and want floor-to-ceiling views without a bulky frame, let’s talk. We’ll bring samples, measure your openings, and give you a written quote with glass options and pricing broken out line by line. Call Meridian Windows and Doors Jacksonville at (904) 513-9670 to schedule a free on-site measurement and project consultation.

Written by the team at Meridian Windows and Doors Jacksonville, serving Jacksonville, FL as an authorized ViewLux installation partner.
