VLX 100 Double Swing / French Door

VLX 100 Double Swing / French Door in Jacksonville, FL | Meridian Windows and Doors Jacksonville

The VLX 100 Double Swing door is a paired aluminum French door system built for Jacksonville homeowners who want wide, open sightlines without giving up storm-season strength. It opens as a true French door set, both panels swinging, with a flush threshold that keeps foot traffic smooth and a multi-point lock that anchors both leaves when closed. We install this door throughout Jacksonville and the Beaches, and because Meridian Windows and Doors Jacksonville is an authorized ViewLux installation partner, you get the manufacturer’s intended performance, not a generic install that voids the warranty. Call (904) 513-9670 to talk specs, sizing, or to schedule a free measurement at your home in Jacksonville.

Call (904) 513-9670

Product Overview – VLX 100 Double Swing / French Door

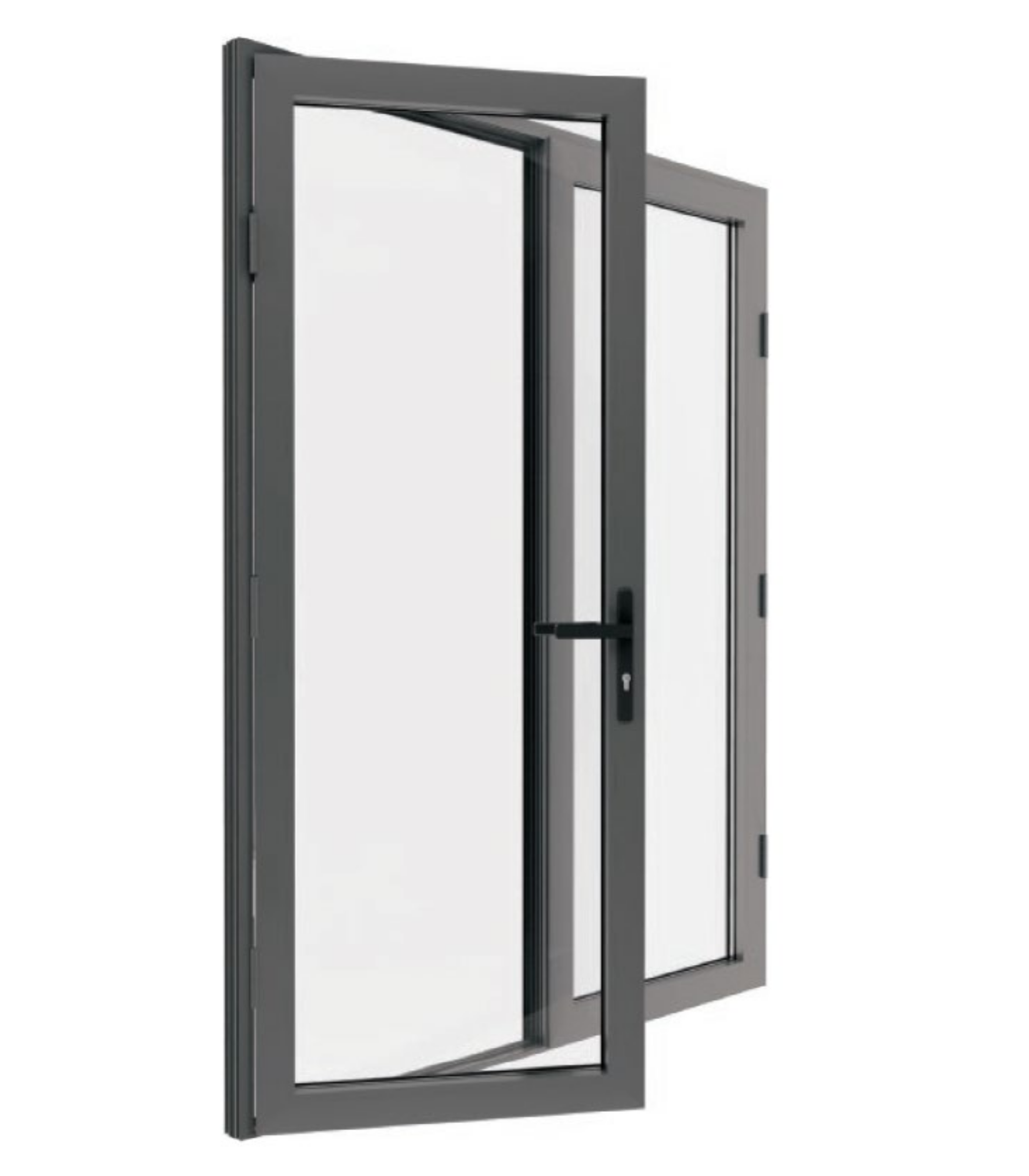

French doors have a reputation problem in Florida. Older wood units swell in humidity, sag over time, and let drafts through. The VLX 100 exists because ViewLux saw that gap and built an aluminum door that carries the French door look without any of the wood-door liabilities. It is a paired door, two aluminum panels with symmetrical sightlines, meaning the visible frame width matches panel to panel and side to side. That symmetry is what gives the door its quiet, ordered look from inside and from the street.

Architecturally, this door fits homes in San Marco, Avondale, Ortega, and Riverside where classic details matter, but it also reads well on newer builds in Nocatee, eTown, and Bartram Park where wide openings and flush thresholds are expected. Buyers choose this series because it holds up to Jacksonville’s humidity, keeps its finish color stable under UV, and does not swell or warp the way wood does. The threshold is flush with the floor, which matters if you or a family member uses a walker, cane, or wheelchair, or if you just hate stubbing a toe on a raised sill. The lock hardware is multi-point, engaging at three points along the jamb rather than a single center latch. That spreads the locking force across the full height of the door and makes the closed door feel planted rather than springy.

Meridian Windows and Doors Jacksonville supplies and installs this door for homeowners across Jacksonville. We order each unit to your opening size and finish selections, then install it level, plumb, and square, with the door operating the way the manufacturer designed it to.

Technical Specifications

• Wall thickness: 0.098-inch extruded aluminum wall, which gives the frame its rigidity and resistance to racking.
• Profile width: 2.56-inch visible frame profile, slim enough for clean sightlines and substantial enough for a true multi-chamber extrusion.
• Maximum span: Up to 96 inches wide, letting the door replace an entire wall of glass or an old sliding door opening.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, and Laminated.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable Screen or none, depending on how you want the opening to feel when panels are open.
• Performance ratings: NFRC-rated thermal performance through thermal break technology; wind-load rated for Northeast Florida requirements; AAMA 2400/2410 installation standard compliant.

All performance numbers above come from standard ViewLux aluminum systems, and we can pull the specific NFRC and wind-load documentation for your Jacksonville project once we have your opening dimensions and glass package.

Performance Features

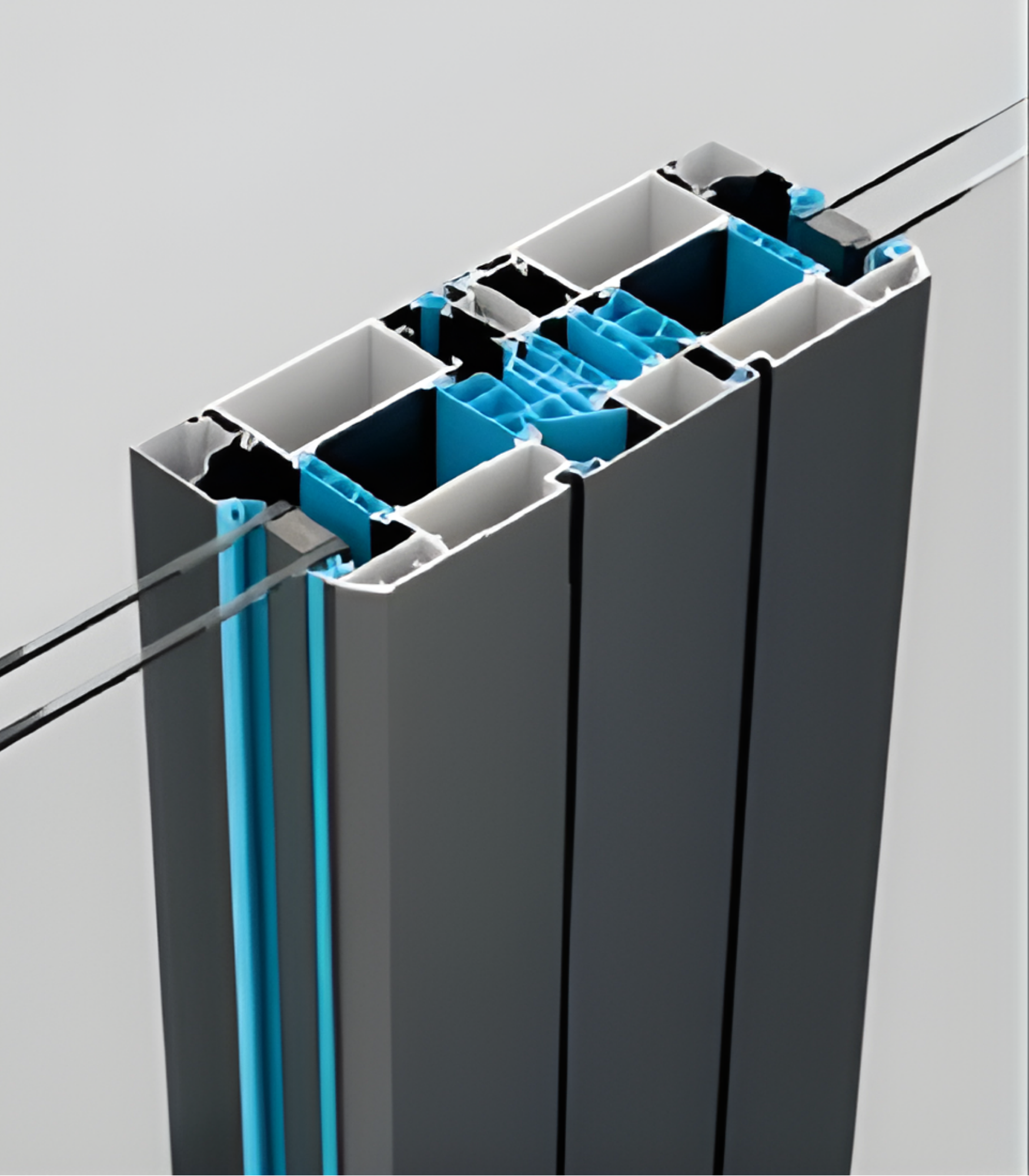

Thermal Efficiency. The VLX 100 carries a polyamide thermal break between the interior and exterior aluminum. That break stops heat from conducting straight through the metal. In a Jacksonville August, that means the inside face of the door stays closer to room temperature, and your air conditioner isn’t fighting the door itself. Pair it with a Low-E glass package and the NFRC-rated performance improves further.

Acoustic Performance. Aluminum doors aren’t silent, but the VLX 100’s multi-chamber extrusions and quality weather seals cut a meaningful amount of street and neighbor noise. If you live on a busy road in San Marco or near the flight path in Arlington, ask us about the laminated glass upgrade. The interlayer in laminated glass is one of the best sound reducers available on a door without going to specialized acoustic glass.

Airtightness & Weather Seal. The door uses compression gaskets that run the full perimeter of each panel. When the multi-point lock engages, the panels pull in toward the frame and compress those seals. That gives you a door that closes like a bank vault, not a wood door that rattles when the wind pushes it. Airtightness matters in Jacksonville because it is a direct line to your monthly FP&L bill.

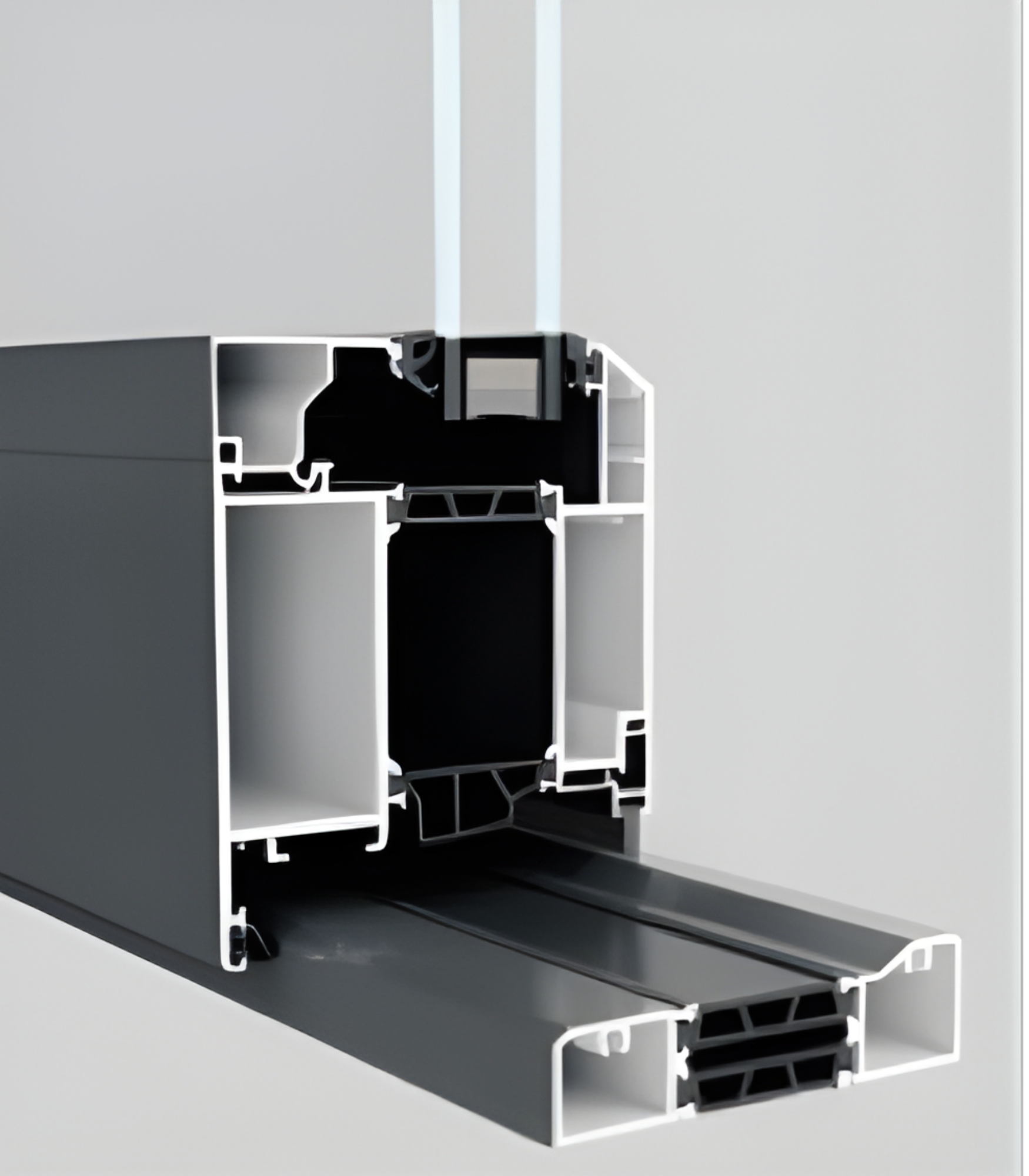

Waterproofing. Jacksonville gets about 53 inches of rain a year, and a lot of it comes sideways in the summer. The VLX 100 is designed with internal weep channels and a sill that sheds water rather than holding it. On the install side, we apply AAMA 812 low-expansion foam sealant on every perimeter joint, which is the part most people cannot see and the part that usually fails on a bad install. That sealant barrier plus the door’s internal drainage is what keeps your floor dry during a heavy afternoon storm.

Wind Resistance. Building code in Duval County requires doors to handle local wind loads, and this door is wind-load rated to meet those requirements. If you are within a mile of the intracoastal or the ocean, ask about the impact-resistant laminated glass option. It gives you a door that handles both wind-borne debris and the pressure cycling a hurricane puts on an opening.

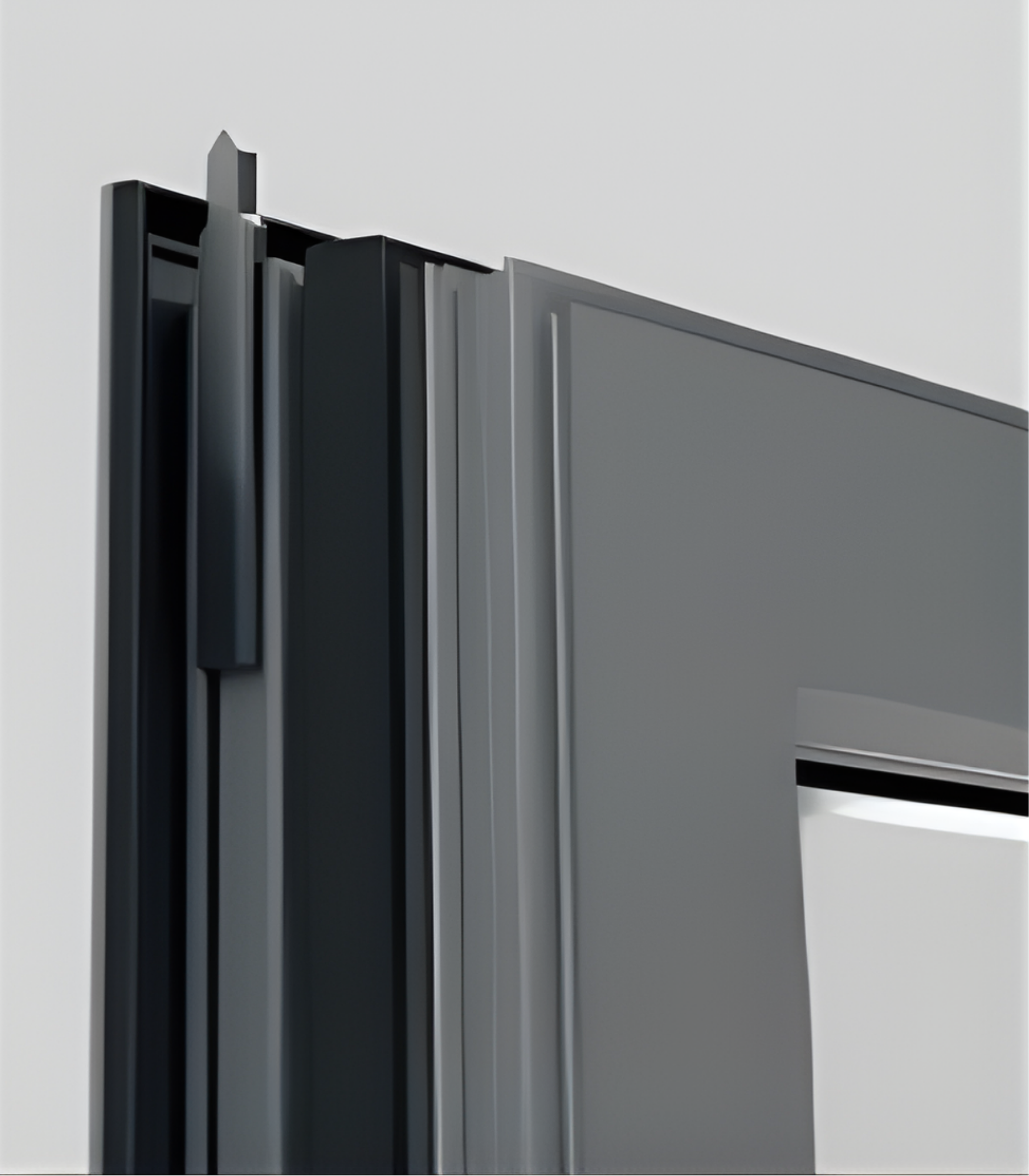

Security & Hardware. The multi-point lock is the standout here. Instead of one latch at the handle height, the door locks at three points along the jamb. That makes the closed door resistant to prying and keeps the panels tight together at the meeting stile. It also eliminates the common French door problem where the two panels bow apart over time because there is nothing holding them together in the center.

Color & Glass Options

Six finishes give the VLX 100 range across styles. Premium Black and Anodized Silver suit modern and contemporary homes in Jacksonville, the kind you see in newer builds through the Southside and along the beaches. Pure White is the pick for traditional Florida homes in Riverside and Avondale, where white trim and wood floors are standard. Bronze and Champagne sit between, warm without being loud, and work well on Mediterranean-style homes in areas like Mandarin. Teak Wood is a wood-tone finish on aluminum, which gets you the warmth of wood grain with none of the swelter, paint, or rot problems real wood doors carry in Jacksonville humidity.

Glass choices depend on what the door faces. Clear glass maximizes light and view. Low-E is the energy upgrade most Jacksonville homeowners should get, particularly on west-facing doors. Tempered glass is safety-rated and code-required in many door locations. Laminated glass adds impact resistance and sound reduction. Frosted or Obscure glass works on a door from a bedroom or bath where you want light but not a view in from outside.

Installation by Meridian Windows and Doors Jacksonville in Jacksonville

The VLX 100 is only as good as the opening it goes into. That is why Meridian Windows and Doors Jacksonville installs every door to AAMA 2400/2410, the installation standard these systems are tested to. We follow the same standard every time, whether the door is going into a new build in Nocatee or a 1960s brick ranch in San Jose. First, we inspect the rough opening, the framing, the flooring, and the exterior cladding. If anything is off, we tell you before the door goes in. Then we set the frame level, plumb, and square. On a double swing door, that matters twice over because both panels must close cleanly against each other. Even a small frame twist shows up at the meeting stile.

Once the frame is set, we apply AAMA 812 low-expansion foam sealant around the full perimeter joint. That is the air and water seal. We verify the drainage path, install any exterior trim, and run a final water test before we call it done. We also walk you through the hardware operation, including the multi-point lock sequence, so you are confident with the door before we leave. Every install we do in Jacksonville is warranty-safe. A manufacturer warranty on an aluminum door means nothing if the install is sloppy, and we have seen enough DIY and low-bid installs with leaks and binding to know exactly how important the last 10 percent of the job is.

Frequently Asked Questions – VLX 100 Double Swing / French Door

What is the lead time for the VLX 100 Double Swing / French Door? Lead time is generally 4 to 6 weeks from order approval, depending on the glass package and finish selected. Custom finishes and laminated glass can add time. Call (904) 513-9670 and we will confirm current lead times for Jacksonville orders before you commit.

Does the VLX 100 qualify for energy tax credits? The VLX 100 can qualify for federal energy tax credits when ordered with the right Low-E glass package, because the credit is tied to the glass performance rather than the door frame alone. We can confirm eligibility for your specific glass and finish combination. Call (904) 513-9670 with your door size and glass package and we will check.

What warranty comes with the Double Swing / French Door? The VLX 100 carries ViewLux’s manufacturer warranty on the frame, finish, and hardware, and a proper AAMA-standard install by Meridian Windows and Doors Jacksonville keeps that warranty intact. We can provide the specific warranty documentation before you sign. Call (904) 513-9670 and we will email it over.

Can I customize the size? Yes, within the door’s 96-inch maximum span. Each VLX 100 is made to your opening dimensions, so you are not locked into a stock size. That works well in Jacksonville older homes where existing openings are not standard. Call (904) 513-9670 to schedule a free on-site measurement.

How do I maintain aluminum frames? Wash the aluminum frame and glass with mild soap and water two or three times a year, rinse the track and sill drains so the weep holes stay clear, and wipe the gaskets with a silicone-based protectant once a year. Do not use abrasive cleaners on the finish. In Jacksonville’s salt air near the beaches, rinse the lower frame of the door monthly. Call (904) 513-9670 if you ever notice a scratch through the finish or a seal that looks flattened.

Get a Quote – VLX 100 Double Swing / French Door in Jacksonville

If you are shopping this door, you are probably replacing an old slider or a worn French door, or planning a build and want the right opening from day one. Either way, we make it easy. Call Meridian Windows and Doors Jacksonville at (904) 513-9670 to schedule a free on-site measurement and get a written, line-item quote for the VLX 100. We measure in Jacksonville, Neptune Beach, Atlantic Beach, Ponte Vedra, and surrounding areas every week. Let’s get your door ordered.

Written by the team at Meridian Windows and Doors Jacksonville, authorized ViewLux installation partner serving Jacksonville, FL.
